These are original, New Old Stock (NOS) parts, not reproductions.
Please ask any questions on condition or model applications.
Email me for availability/price, include part number/description,
quantity wanted, and your address for shipping estimate.

Money order or credit card thru Paypal are preferred for payment.

PINION RING GEAR - SEAL
AXLE SHAFT
REAR AXLE SEAL
UNIVERSAL JOINT
TRANSMISSION YOKE
DRIVESHAFT CENTER BEARING
PINION RING GEAR - SEAL
YEAR/MODEL PART # CONDITION PICTURE
46-56 Ambassador

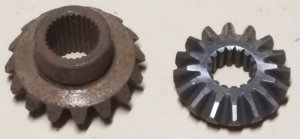

Differential Side Gear
3121441 NOS, $74 each
2 needed per car,
2 available
60 American/Rambler Six
(Type 2) (Less Locking Differential)
Differential Side Gear
3158336 NOS, $25 each
2 needed per car,
2 available
62-66 American (Six);
62-64 Classic (196 OHV);
65 Classic (199 OHV)
(without locking differential)

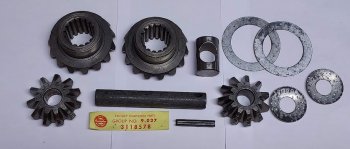

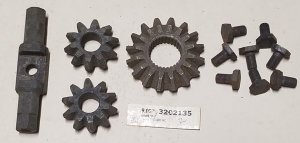

Differential Side Gear Set
3203394 NOS
$149
46-56 Ambassador

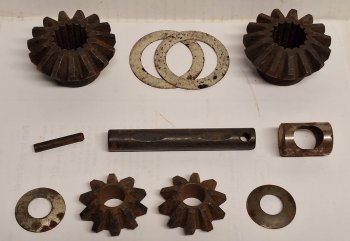

Differential Side Gear/Washer Set
3121443 SOLD
62-66 American (Six);
62-64 Classic (196 OHV);
65 Classic (199 OHV)
(All Less Locking Differential)
Differential Side Gear
3164366 NOS, $39
2 needed per car
1 available
46-59 Ambassador;
57 Rebel/Hudson (Std.)(.062)(bronze)
Rear Axle Pinion Thrust Washer
87044 NOS,
2 needed per car
2 available
$6 each
39-40 Lafayette/Ambassador;
42-56 Ambassador Six/Eight
Differential Side Bearing Cup
98556 NOS
$39
37-57 All
Rear Axle Drive Gear to Case
Screw Lock Plate
23242 NOS, $3 each
8 needed per car
58-59 Rebel V-8/Ambassador;
60-64 Six/Rebel/Classic/Ambassador V-8;
64 Classic (OHVC-232)
(13/41 ratio)

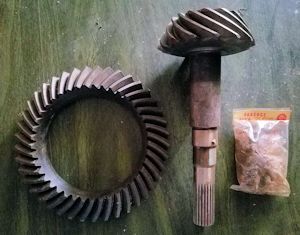

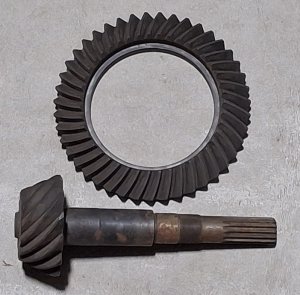

Ring Gear Set and Pinion
3206519 SOLD
60-64 Six/Rebel/Classic/Ambassador V-8;
64 Classic (232 OHV) (11/39 ratio) (3153085)
Ring Gear Set and Pinion
3206521 SOLD
64-65 American;
64-65 Classic
(196 & 199 OHV),
(9/37 ratio)

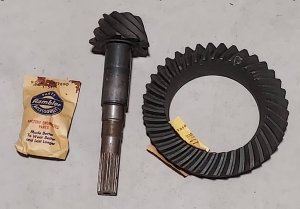

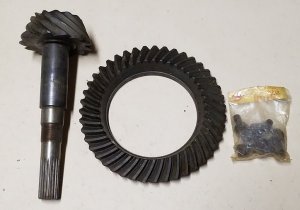

Ring Gear Set and Pinion
3171190 NOS
$249
64-65 American (15/41 ratio)
(196 & 199 OHV) (3171388)

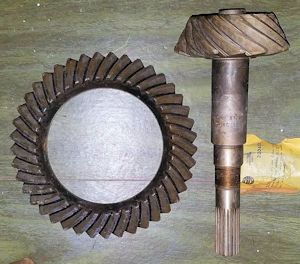

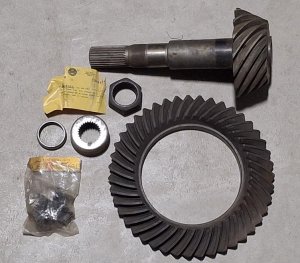

Ring Gear Set and Pinion
3206532 NOS
$249
41-48 600
Rear Pinion Bearing (rear)
3105338 NOS
$35
37-39 Lafayette/Ambassador Six;
41-48 600
Rear Axle Pinion Shaft
Front Bearing Shim (.003)
28316 NOS, $4 each,
As Required,
Several available

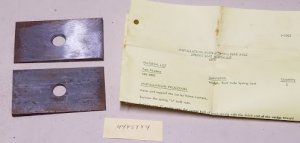

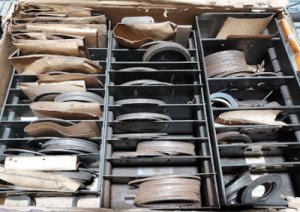

Various Pinion Front Bearing Shims
Also Rear Axle Side Bearing Shims
Contact me with needs
9.045 & 9.062 Several available
39-40 Lafayette;
39-48 Ambassador
Rear Axle Pinion Seal
3104374 NOS
$49
49-53 Ambassador
Rear Axle Pinion Seal
3134093 NOS
$29
41-48 600/Ambassador
Rear Axle Bumper
3106486 NOS, $49 each
2 needed per car
2 available
41-42 600
Stabilizer Bar Grommet
3106898 NOS, $9 each
4 needed per car,
4 available
46-48 600
Stabilizer Bar Grommet
3121606 NOS, $14 each
2 needed per car,
2 available
41-49 600;
50-E53 Statesman;
L53-55 Statesman (with Hydramatic Trans.)
Pinion Seal
3106480 NOS
$15
53-56 Statesman
56-65 Rambler Classic 196
Pinion Seal
3138143 NOS
$5
Return to Top of Page
AXLE SHAFT
YEAR/MODEL PART # CONDITION PICTURE
46-55 600/Statesman
Rear Axle Shaft Key
3105337 NOS
2 needed per car
2 available
$9 each
49-54 Ambassador
Rear Axle Shaft Key
3125086 NOS
2 needed per car
2 available
$9 each
41-48 600
Rear Axle Shaft
3121903 NOS, $95
55-57? Rambler
Rear Axle Shaft (28-1/2")
3148515 NOS, $75 each
2 needed per car,
2 available
55-57 Ambassador (6 & 8)
Left Rear Axle Shaft (32")
3142046 NOS, $95
56 Rambler (Early)
Rear Axle Shaft (31")
3144996 NOS, $75
57 Rambler (Early)
Rear Axle Shaft (with Keyway)
(31-1/2")
3150349 NOS, $75 each
2 needed per car,
2 available
L57-59 Rambler
Rear Axle Shaft
(31-1/2")
3153151 NOS, $75 each
2 needed per car,
2 available
58-59 Rambler Rebel
(with manual trans/overdrive);
(with auto. trans)
Left Rear Axle Shaft (31-3/4")
3153157 NOS, $75
58 Rebel (with Auto. Trans.)
(Type 2)
Right Rear Axle Shaft (32-1/2")
3154624 NOS, $75
58-59 Ambassador
Right Rear Axle Shaft (32-3/4")
3153156 NOS, $75
60 Rambler Six;
61 Classic
Rear Axle Shaft (less Keyway)
(31-1/2")
3160731 NOS, $75 each
2 needed per car,
2 available
60 Rebel;
61 Classic
Right Rear Axle Shaft (less Keyway)
(32-1/4")
3157830 NOS, $75
60-61 American
Rear Axle Shaft (less Keyway)
(30")
3157665 NOS, $75 each
2 needed per car,
2 available
61-62 Ambassador
Left Rear Axle Shaft (with Keyway)
(31-1/4")
3160663 NOS, $75
61-62 Ambassador
Right Rear Axle Shaft (with Keyway)
(32-3/4")
3160664 NOS, $75
61-62 Classic
Rear Axle Shaft (with Keyway)
(31-1/2")
3160731 NOS, $75
2 needed per car,
2 available
61-63 American
Rear Axle Shaft (with Keyway)
(30")
3160730 NOS, $75
63-64 Classic (OHV 196);
65 Classic (OHV 199)
Left Rear Axle Shaft (with Keyway)
(31-1/2")
3160731 NOS, $75
63-64 Classic (OHV 196);
65 Classic (OHV 199)
Right Rear Axle Shaft (with Keyway) (30-1/2")
3166621 NOS, $75
We have several NOS axle shafts that are unmarked, late 50's - early-mid 60's,
if you give me length measurements I will try to help.
Return to Top of Page
REAR AXLE SEAL
YEAR/MODEL PART # CONDITION PICTURE
41-54 Ambassador Six
Rear Axle Inner Seal
3142379 NOS
2 needed per car
2 available
$14 each
49-56 Ambassador
Rear Axle Inner Seal
3142044 NOS
2 needed per car
2 available
$14 each
49-56 600/Statesman
Rear Axle Inner Seal
3142362 NOS
2 needed per car
2 available
$14 each
50-56 Rambler
Rear Axle Inner Seal
3142377 SOLD
55-57 Ambassador; 58-64 V8
(exc '58 Rambler V8 w/AT Type 2)
Rear Axle Inner Seal
3152044 NOS
2 needed per car
2 available
$14 each
56 Ambassador Special
Rear Axle Inner Seal
3148672 NOS
2 needed per car
2 available
$14 each
49-55 Ambassador
Flange, Rear Axle Companion
3123386 NOS
$30
41-56 600/Statesman;
50-57 Rambler (exc. 57 V-8)
Pinion Nut
3105331 NOS, $9
Return to Top of Page
UNIVERSAL JOINT
YEAR/MODEL PART # CONDITION PICTURE
37-40 Lafayette/Ambassador Six
U-Joint Slip Yoke
93567 NOS
$149
37-40 Lafayette;
37-48 Ambassador Six
Universal Joint Yoke Dust Cap
93563 NOS
$9
37-40 Lafayette/Ambassador Six
Universal Joint Bearing Retainer & Bolt
93564-65 NOS,
4 needed per car,
4 available,
$3 set
35-40 Ambassador Eight
Universal Joint
3109413 NOS
$79
37-40 Lafayette/Ambassador 6;
41-48 Ambassador 6
Universal Joint
3108171 NOS,
2 needed per car,
2 available,
$69 each
37-40 Lafayette;
37-48 Ambassador
U-Joint Bearing
93697 NOS, $29
4 needed per car,
1 available
41 Ambassador Eight
Universal Joint
3108172 NOS
$79
41-49 600;
50 Statesman; 51-56 Statesman (WHT);
53-55 Statesman (LHT);
53-56 Rambler;
57 Rambler Six (WAT)
Universal Joint
3108170 NOS
$59
49-56 Ambassador (LHD);
56 Ambassador Special V-8 (WHD);
57 Ambassador/Hudson
55-56 Ambassador V-8 w. Ultramatic;
57 Rebel/Rambler V-8
Universal Joint
3119649 NOS
$49
50-53 Rambler
Universal Joint
3113942 NOS
$69
51-56 Ambassador 6;
56 Ambassador Special V-8;
57 & 59 Rambler V-8 w.1-1/16 cap
Universal Joint
3114708 NOS
$39
55 Statesman (LHD);
58-59 American (WAT);
58-59 Rambler Six (WAT);
60-61-62-63 American,
(All but convertible);
60-62 Classic (WAT)
Universal Joint
3119116 NOS
$49
56 Ambassador V-8 w. Ultramatic;
57 Rebel;
57 Ambassador/Hudson with 1-1/8 cap
Universal Joint
3119731 NOS
$19
56-62 Classic/Rambler/ Rambler Six
(with Manual Trans.)
Universal Joint
3119752 NOS
$19
58-59 American (2 required);
58-59 Rambler Six (WAT) (1 required)
Universal Joint
3200854 NOS
$39
58-61 Rebel/Classic V-8;
59 Rambler Six (with Manual Trans.);
62 Ambassador
Universal Joint
3200855 NOS
$39
58-59 Ambassador (with Manual Trans.);
58-59 Ambassador (with Auto. Trans.);
60-62 Rebel/Ambassador (with Manual Trans.)
Universal Joint
3200856 NOS
$24
64 Classic (232 OHV); 65 Classic/Ambassador (232 OHV)
63-66 Classic/Ambassador V-8;
65-66 Marlin V-8
Universal Joint
3205371 NOS
$24
66 American (199), Type 2
(2-11/16" cap to cap)
Universal Joint
3207174 NOS
$24
72-93 JEEP
Universal Joint
365 NOS
$19
78-83 Spirit/Concord/Eagle/Pacer
Universal Joint
3233715 NOS
$24
Return to Top of Page
TRANSMISSION YOKE
YEAR/MODEL PART # CONDITION PICTURE
41-49 600;
50-55 Statesman (exc. A/T)
Driveshaft Yoke Assembly
3145689 NOS
$125
51-53 Rambler (w Manual Trans);
54-55 Rambler 4 dr (w Manual Trans);
54-55 Rambler 4 dr (w Auto Trans);
58-59 American
Pinion Yoke
(Universal Products type
for 1.010" U-joint caps)
3115779 NOS
$229
54-55 Rambler 4 Dr.
(with Hydramatic Trans.)
Transmission Yoke
(Universal Products type)
3116469 SOLD
54 Rambler 4 Dr.
(Mechanic type),(w 3 speed);
60-63 American (except Convertible)
Manual Transmission Yoke
3116954 NOS
$149
56-61 Rambler Six/Classic
Manual Transmission Yoke/U-Joint Assembly
3145473 NOS
$175
58-63 American
(for u-joint with 1" dia caps)
Automatic Transmission Yoke
3200934 NOS
$199
58-63 American
(for u-joint with 1.010" dia caps,
Spider has word "Detroit")
Automatic Transmission Yoke, Front
3202425 NOS
$149
58-63 American
(except Convertible)
(for u-joint with 1.010" dia caps,
Spider has word "Detroit")
Manual Transmission Yoke, Front
3202426 NOS
$149
58-63 American (w Overdrive)
(for u-joint with 1.010" dia caps,
Spider has word "Detroit")
Manual Transmission Yoke, Front
3202427 NOS
$199
60-63 American Convertible
Manual Transmission Yoke
3202772 SOLD
60-63 American
(w. Overdrive)
(for u-joint with 1" dia caps)
Manual Transmission Yoke
3116953 NOS
$199
60-61 Ambassador
Automatic Transmission Yoke
3202654 NOS
$99
60 Rebel;
61 Classic V-8;
62 Ambassador
Automatic Transmission Yoke
3200852 NOS
$99
63 Classic (Six)
Automatic Transmission Yoke/U-Joint Assembly
3163514 NOS
$175
64 Classic (196); 65 Classic (199)
Automatic Transmission Yoke/U-Joint Assembly
3171348 NOS
$175
63-66 Classic V-8
(w. Manual Trans),
(w. Overdrive)
66 Classic V8
(w. 4 Speed Trans.)
Manual Transmission Yoke
3204582 NOS
$199
65-67 American (232);
66 American V-8
Automatic Transmission Yoke (Front)
3206120 NOS
$149
Return to Top of Page
DRIVESHAFT CENTER BEARING
YEAR/MODEL PART # CONDITION PICTURE
37-40 Lafayette/Ambassador 6
Transmission Flange (Standard)
91757 NOS
$39
41-48 600
Driveshaft Center Bearing Assembly
3109683 NOS
$99
49-51 Ambassador
(with Manual Transmission)
Driveshaft Center Bearing Kit
3113486 NOS
$49
52 Statesman, (Type 1)
(with Manual Transmission)
Driveshaft Center Bearing Kit
3115750 NOS
$49
52-56 Statesman
Driveshaft Center Bearing Kit
3116741 NOS
$49
52-56 Ambassador 6;
55-56 Ambassador 8;
56 Special
(all Standard Trans.)
Driveshaft Center Bearing Propeller Retainer
3123590 NOS
$39
54-55 Rambler
Driveshaft Center Bearing Stud
3138854 NOS
2 needed per car,
2 available
$9 each
57-59 Rambler V-8/Rebel/Ambassador;
57 Hudson (WST, WOD)
Driveshaft Center Bearing Kit
3115751 NOS, $74
64 Classic (232 OHV);
65 Classic/Ambassador/Marlin (232 OHV);
66 Classic/Ambassador/Marlin (Six)
Driveshaft Center Bearing Assembly
3205370 NOS, $74
62-64 Classic (196);
65 Classic (199)
Torque Tube Trunnion
3163191 NOS, $224
58-66
Rebel/Classic/Ambassador/Marlin V-8
Plate, Trans. Rear Clutch Drum Drive
(Internal Teeth)
3150893 NOS,
4 required per car
4 available
$19 each

Return to Top of Page
Back to:
Nashparts.com Parts HOME
