These are original, limited quantity new old stock (NOS) parts, not reproductions.
NOS condition can have some shelf wear.
Email me for availability and price, include part number and description,
quantity wanted, and your address for shipping estimate.

Venmo, Zelle, or Facebook Pay are preferred for payment.
STEERING KNUCKLE,
PIN & ARM

LOWER CONTROL
ARM

UPPER CONTROL
ARM

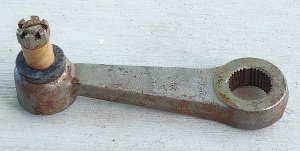

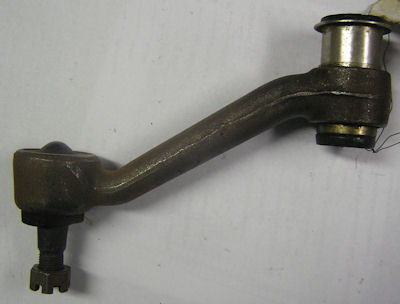

PITMAN ARM
IDLER ARM PIN &
BUSHING

IDLER ARM
BRACKET

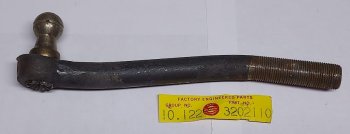

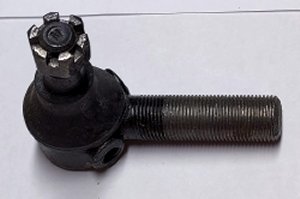

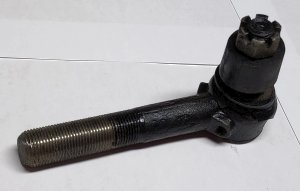

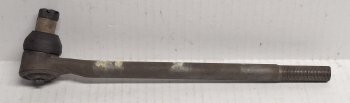

TIE ROD

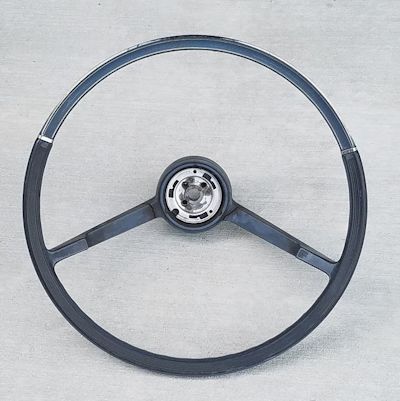

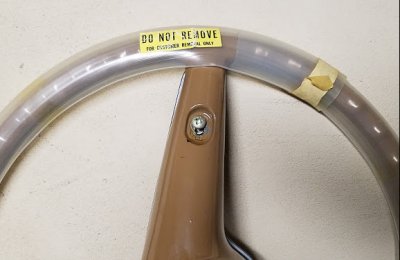

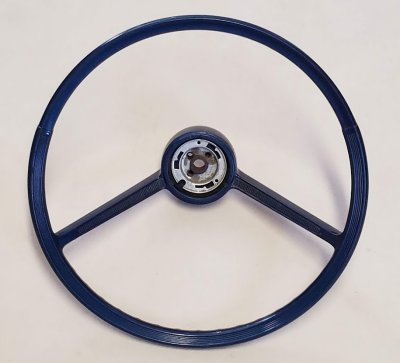

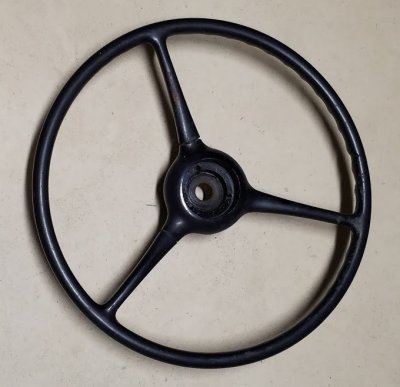

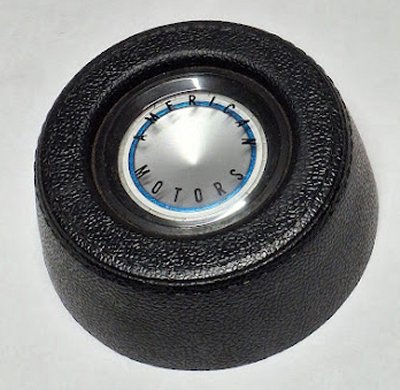

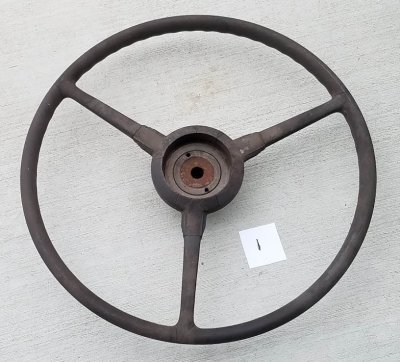

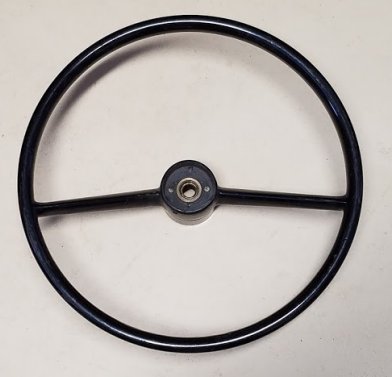

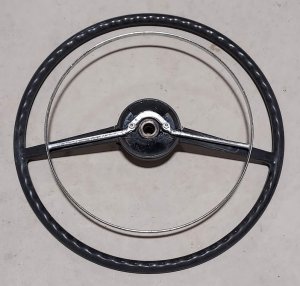

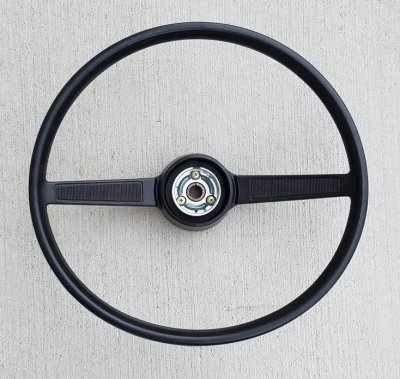

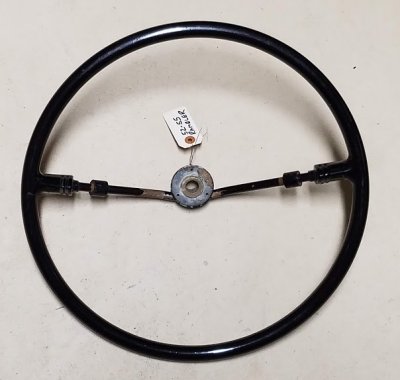

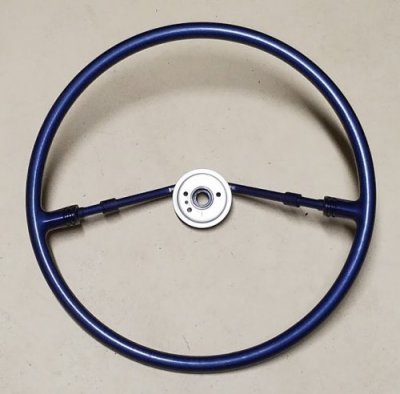

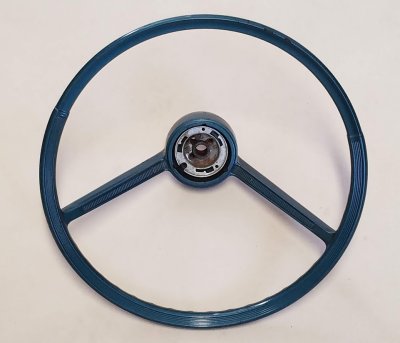

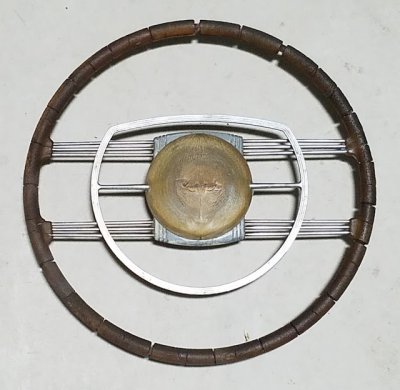

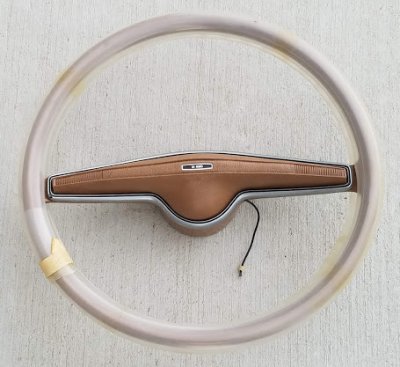

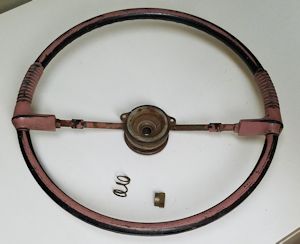

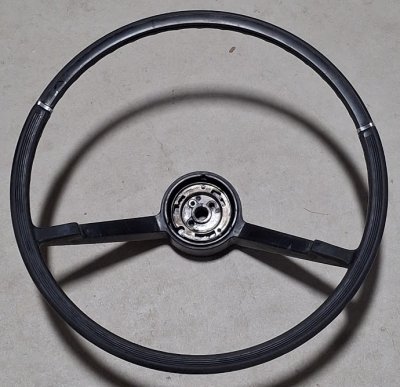

STEERING WHEEL &

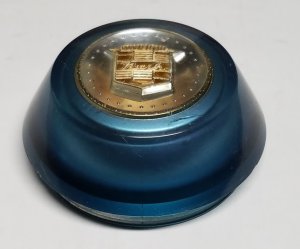

HORN CAP

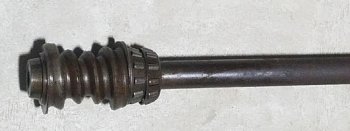

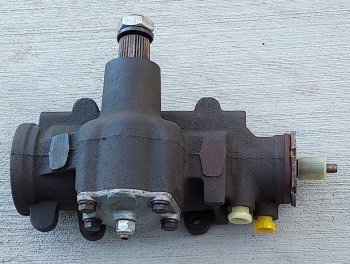

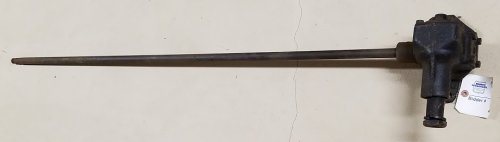

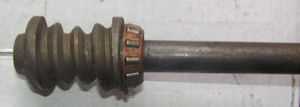

STEERING GEAR &

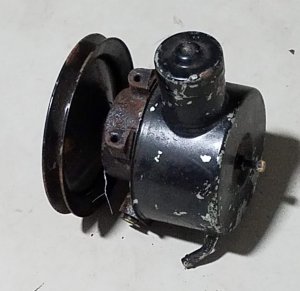

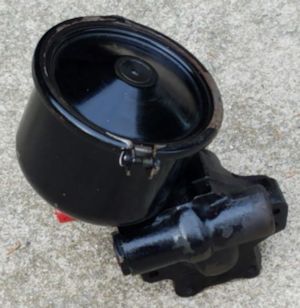

POWER STEERING

1941-42 600 Suspension
Illustration
YEAR/MODEL PART # CONDITION PICTURE
41-42 600
(Left) Steering Knuckle
(Incl. 3111798 Inner Wheel Bearing)
3111804 NOS, $99
41-42 600
(Lower) Steering Knuckle Cushion
3109795 NOS, $19
2 needed per car
1 available
41-42 600
Steering Knuckle Pin
(Upper) Cap & Extension
3111736 NOS, $35 each
2 needed per car
2 available
41-42 600
Steering Knuckle Boot Retainer
3101719 NOS, $2 each
2 needed per car
2 available
41-42 600
Steering Knuckle Boot Retainer Washer
3107118 NOS, $3 each
2 needed per car
2 available
41-42 600
Steering Knuckle Clamp, Complete,
(Small)
3111915 NOS, $9 each
2 needed per car
2 available
41-42 600
Steering Knuckle Clamp, Complete,
(Large)
3111916 NOS. $9 each
2 needed per car
2 available
41-42 600
Steering Knuckle Seat & Bearing
3111734 NOS, $39
2 needed per car
1 available
41-42 600
Steering Knuckle Bearing Felt Spring
3111709 NOS, $5 each
2 needed per car
2 available
41-42 600
LF Steering Pin Brace Rubber Grommet
3107232 SOLD
1946-48 600 Suspension
Illustration
YEAR/MODEL PART # CONDITION PICTURE
46-48 600
Suspension Crossmember Bolt Bushing
3121189 NOS, $5 each
8 needed per car
8 available
46-48 600
Steering Knuckle Pin Ball
3122684 NOS, $9 each
2 needed per car
2 available
46-48 600
Steering Knuckle Pin Ball
Lock Pin
3122485 NOS, $3 each
2 needed per car
2 available
46-48 600

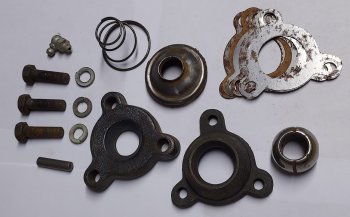

Steering Knuckle Pin Ball Socket Assembly
3123346 NOS, $99
46-48 600
Steering Knuckle Pin Ball Retainer
3123134 NOS, $19 each,
2 available
46-48 600
Steering Knuckle Pin Ball Shim (0.10)
3121204 NOS, $1 each
As needed per car
46-48 600
Steering Knuckle Pin Ball Seat
3123124 NOS, $19 each
2 needed per car
2 available
46-48 600;
49-51 Statesman/Ambassador
Steering Knuckle Bearing Washer (Steel)
3121718 NOS, $9 each
2 needed per car
2 available
46-48 600
Steering Thrust Ball Bearing Rubber Seal
(Upper)
3121701 NOS, $4 each
2 needed per car
2 available

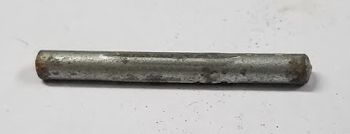

52-56 600/Statesman/Ambassador
Steering Knuckle Bearing Washer Pin
3135387 NOS, $3 each
2 needed per car
2 available
38-39 Ambassador/Lafayette
41-48 Ambassador
King Pin Oiler (Upper)
3104893 SOLD
40 Ambassador/Lafayette
41-48 Ambassador
King Pin Oiler (Upper)
3103076 NOS, $19 each
2 needed per car
2 available
41-48 Ambassador
King Pin Bushings
3124299 NOS, $19 each
2 needed per car
2 available
41-48 Ambassador

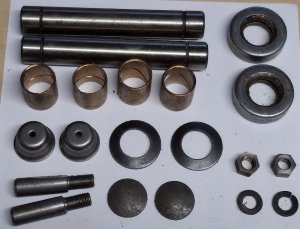

King Pin Repair Kit
3112751 NOS, $40
41-48 Ambassador
Front Wheel Spindle
3122680 NOS, $99

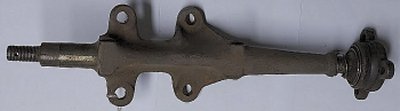

46-48 600
Steering Knuckle Pin
(w. Ball & Seat)
3122690 NOS, $150
50-51 Statesman/Ambassador
Suspension Cross to Sill
Sleeve & Washer
3113371 NOS, $9 each
2 needed per car
2 available
49-51 600/Statesman
Left Hand Steering Arm
3124318 NOS, $49
49-51 600/Statesman
Right Hand Steering Arm
3124319 NOS, $49

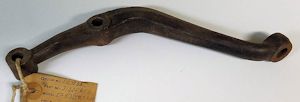

52-53 Statesman/Ambassador;
54-55 Statesman (LPS);
54 Ambassador;
55-56 Ambassador (WPS)
Left Hand Steering Arm
3133561 NOS, $99
55-56 Ambassador Six (LPS);
55-56 Ambassador Eight
Right Hand Steering Arm
3143194 SOLD

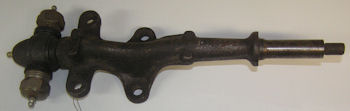

52-57 Statesman/Ambassador;
57 Hudson
Steering Knuckle Pin
(with Lower Trunnion Set)
3133606 NOS

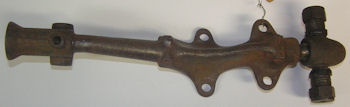

50-54 Rambler
Steering Knuckle Pin
(complete w. Upper and Lower Trunnion Sets)
3133769 NOS

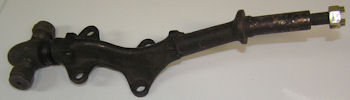

55 Rambler
Steering Knuckle Pin
(with Lower Trunnion Set)
3142502 NOS
2 needed per car
2 available
56 Rambler, (Type 1)
Steering Knuckle Pin
3144865 NOS, $79 each
2 needed per car
2 available
57-61 Rambler Six/V-8/Rebel;
58-61 Ambassador (Type 1)

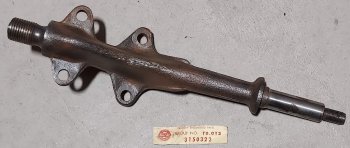

Steering Knuckle Pin, Type 1
(Pin Only)
3150322 NOS, $179,
1 available

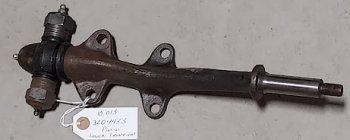

58-63 American
Steering Knuckle Pin, Type 1
(w. Lower Trunnion Assembly)
3204433 NOS, $249 each
2 needed per car
2 available

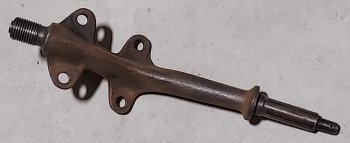

58-63 American
Steering Knuckle Pin, Type 1
(Pin Only)
3204433P NOS, $149,
1 available

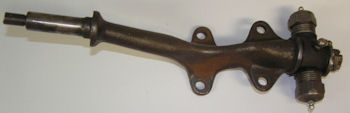

60-63 American
Steering Knuckle Pin, Type 2
(w. Lower Trunnion Assembly)
3207017 NOS, $249 each
2 needed per car
2 available

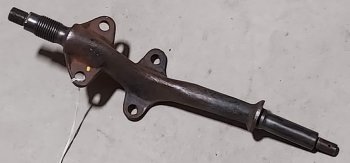

60-63 American
Steering Knuckle Pin, Type 2
(Pin Only)
3207017P NOS, $149,
1 available
60-61 Rambler/Classic
LH Steering Arm
3158283 NOS, $49
62-66
Classic/Ambassador/Marlin
Steering Knuckle Pin
3162825 NOS, $75 each,
2 needed per car
2 available
57 Rebel/Hudson;
57-60 Rambler Six/Rebel/Ambassador
Steering Knuckle Pin Thrust Bearing Kit
3202283 NOS, $19 each
2 needed per car,
2 available
60-63 American
Steering Knuckle Arm (Right)
3158426 NOS, $44
62-63 Classic/Ambassador
Steering Knuckle Pin Thrust Bearing
3163284,
3204435
SOLD
64-E66 American
Steering Knuckle Pin
3171598 NOS, $149 each
2 needed per car,
2 available

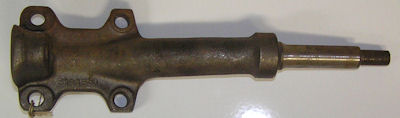

68-69 American/Javelin/AMX
Steering Knuckle Pin
3191580 SOLD
Return to Top of Page
LOWER CONTROL ARM
YEAR/MODEL PART # CONDITION PICTURE
40 Lafayette/Ambassador
Suspension Lower Rubber Bumper
3103044 NOS
2 needed per car,
2 available
41-42 600
Suspension Lower Rubber Bumper
3107042 NOS
2 needed per car,
2 available
46-48 600
Suspension Lower Rubber Bumper
3121201 NOS
2 needed per car,
2 available
41-42 600
Front Suspension Spring Seat, (Lower)
3107069 NOS
2 needed per car,
2 available
41-42 600
Front Suspension Spring Bumper, (Upper)
3107076 NOS
2 needed per car,
2 available
41-42 600
Front Suspension Spring Cushion (Lower)
3107015 NOS
2 needed per car,
2 available
46-48 600
Lower Control Arm Trunnion
3121231 NOS
2 needed per car
2 available
46-49 600;
49-50 Ambassador;
50 Statesman
Lower Control Arm Trunnion Bushing
(Inside Trunnion)
3121234 NOS, $29 each
2 needed per car
2 available
46-48 600
Lower Control Arm Trunnion Bushing
(Oiler type)
3121236 &
3121235
NOS
4 needed per car
4 available
46-48 600
Lower Control Arm Trunnion Bushing Oiler
3109401 NOS
4 needed per car
2 available
46-48 600

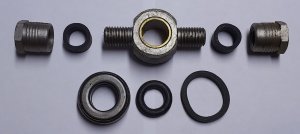

Lower Control Arm Trunnion Kit
3113392 NOS, $149 each
2 available
46-48 600
Lower Control Arm Pivot Bushing,
with Oiler
(Arm to Crossmember)
3131523 NOS, $29 each
4 needed per car,
4 available
49-50 600/Statesman/Ambassador

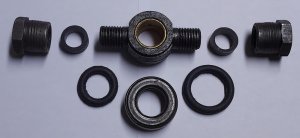

Lower Control Arm Trunnion Kit
3113393 NOS, $79 each
2 available
50-51 Rambler

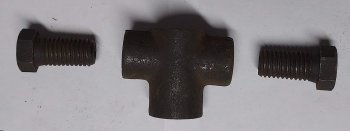

Lower Control Arm Trunnion Kit
(Trunnion w. 2 Bushings)
3129508K NOS, $149
70-83 All except Eagle and Pacer
Lower Ball Joint
10228 NORS, $24 each
2 needed per car
2 available
50-51 Rambler
(1-1/16" Hex. Head)
Pivot Bar to Lower Arm Bushing
3132723 NOS, $19 each
4 needed per car
4 available
50-51 Rambler

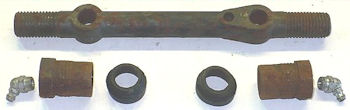

Lower Arm Pivot Bar Assembly
3114850 NOS, $99 each
2 needed per car,
2 available
50-51 Rambler
Lower Arm Brace to Pivot Bar Spacer, Left
3124932 NOS
2 needed per car,
2 available
51 Statesman/Ambassador

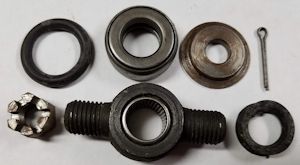

Lower Control Arm Trunnion Kit
3114733 NOS, $99
52-54 Rambler
Lower Arm Pivot Bar
3115914 SOLD
52-55 Rambler
Control Arm Bushing
3133508 NOS, $59 each
4 needed per car,
4 available
52-56 Rambler
Lower Control Arm Trunnion,
(Type 1)
3133946 SOLD
52-56 Rambler
Lower Control Arm Bushing,
(Type 1, Plain type)
3135324 NOS
2 needed per car,
2 available
52-56 Rambler
Lower Control Arm Trunnion,
(Type 2)
3200777 NOS
2 needed per car,
2 available
52-56 Rambler

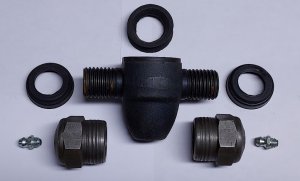

Lower Control Arm Trunnion Kit,
(Type 1, 1" hex on bushings)
3201199 NOS, $175
1 available
52-56 Rambler
Lower Control Arm Trunnion Kit,
(Type 2)
3201200 NOS
2 needed per car,
2 available
52-56 Rambler
Lower Control Arm Spacer
3134953 NOS
1 available,
4 needed per car
52-55 Rambler
Lower Control Arm Bracket to Body Insulator
3136881 NOS, $15 each,
6 available
52-55 Rambler
Lower Control Arm Pivot Bar
to Body RH Long Stud
3134515 NOS
52-55 Rambler
(52 with 33/64" holes)
Lower Control Arm Pivot Bar to Body Stud
3137187 NOS
3 needed per car,
3 available
55-56 Rambler
Lower Control Arm Bushing,
(Oiler type)
3135336 NOS
2 needed per car,
2 available

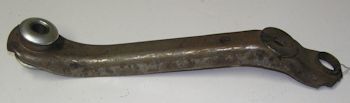

56 Rambler (Type 2)
Lower Control Arm, with Bushing
3154770 NOS, $150

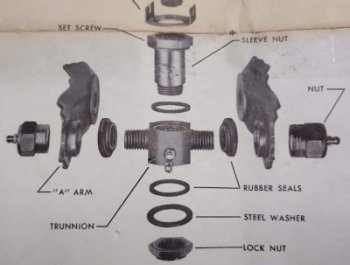

52-57 Ambassador/Statesman;
58-61 Amb/Classic/Rebel;
58-63 American
Lower Control Arm Trunnion Kit
(Repair kit for worn knuckle threads)
3202511R NOS, $175 each
2 needed per car,
2 available
52-54 Ambassador/Statesman
Upper Inner Control Arm Shaft Spacer (thick)
3133510 NOS, $24 each
3 available
52-54 Ambassador/Statesman
Lower Control Arm Bracket to Body Insulator
3136879 NOS, $24
52-54 Ambassador/Statesman
Right Rear Lower Control Arm
3134258 NOS
52-54 Ambassador/Statesman
Left Rear Lower Control Arm
3135084 NOS
52-54 Ambassador/Statesman

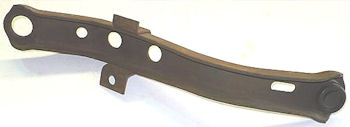

Right Front Lower Control Arm
3134715 NOS
52-54 Ambassador/Statesman
Pivot Bar to Lower Arm Bushing
3133504 NOS
4 needed per car,
4 available

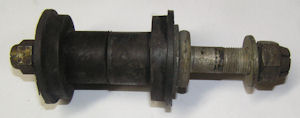

52-54 Ambassador/Statesman
Pivot Bar to Body Stud,
(with Insulators, Washers & Nuts
3137189 NOS
4 needed per car,
2 available
52-54 Ambassador/Statesman
Lower Control Arm Bracket to Body Insulator
3136879 SOLD
52-56 Statesman/Ambassador
Lower Control Arm Trunnion
3133605 NOS
52-58
Rambler Six/Rebel
Control Arm to Trunnion Seal
3133947 NOS, $79
55-56 Hudson, Statesman/Ambassador;
56 Ambassador Special;
57 Ambassador/Hudson
Left Rear Lower Control Arm
3143354 SOLD
55-56 Hudson, Statesman/Ambassador;
56 Ambassador Special;
57 Ambassador/Hudson

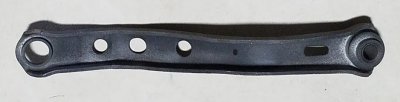

Right Rear Lower Control Arm
3143355 SOLD
55-56 Hudson, Statesman/Ambassador;
56 Ambassador Special;
57 Ambassador/Hudson
Left Front Lower Control Arm
3143360 SOLD
55-56 Hudson, Statesman/Ambassador;
56 Ambassador Special;
57 Ambassador/Hudson
Right Front Lower Control Arm
3143361 SOLD
56-61 Rambler/Rebel/Classic;
58-61 Ambassador
Eccentric Bolt Kit
3205111 NOS, $19 each
4 needed per car,
4 available
56-61 Rambler/Rebel/Classic;
55-61 Ambassador;
55-56 Statesman
Eccentric Bolt Washer
3140769 NOS, $4 each
4 needed per car,
4 available
56-61 Rambler/Rebel/Classic;
55-61 Ambassador;
55-56 Statesman
Eccentric Bolt Nut (5/8")
3149195 NOS, $3 each
4 needed per car,
4 available
57 Rambler/Rebel;
58-63 American;
58-61 Rambler Six/Rebel/Classic
Spacer to Lower Control Arm Bolt
3150285 NOS, $9 each
2 needed per car,
2 available
58-63 American
Lower Control Arm w. Bushing
3154759 NOS, $149 each,
4 needed per car,
4 available
58-63 American
Lower Control Arm Brace to
Pivot Bar Bite Washer
3133603 NOS, $6 each
58-63 American
Lower Control Arm Pivot Bar
3135833 NOS, $29
61-63 American
Lower Control Arm Bushing
3154730 NOS, $49
62 Classic/Ambassador
RH Strut Rod Bracket,
w. Bushing
3163399 NOS, $39
62 Classic
(w. Standard Trans and Overdrive)
Lower Control Arm Strut Rod to Side Sill Bracket
Left side, Bushing included
3165736 NOS, $39
62-E65 Ambassador/Classic/Marlin
(for 65 w. 5/8" strut rod)
Lower Control Arm Strut Rod Bushing
3165549 NOR, $49 each
2 available
64-88 All
(except 64-67 Ambassador/Classic/Rebel/Marlin)
Lower Control Arm Strut Rod Bushing
3171493 NORS, $34
67-68 Rebel/Marlin/Ambassador
Lower Control Arm,
Including ball joint & pivot bushing
3186473 NOS, $224
79 Concord/Spirit
Lower Control Arm Strut Rod Bushing
(Front)
3234707 NOS, $9 each
2 needed per car,
2 available
79 Concord/Spirit
Lower Control Arm Strut Rod Bushing
(Rear)
3234705 NOS, $9 each
2 needed per car,
2 available
Return to Top of Page
Upper Control Arm
YEAR/MODEL PART # CONDITION PICTURE
39 Lafayette
Steering Drag Link
98966 NOS, $99
39 Ambassador Six
Steering Drag Link
98968 NOS, $99
40 Ambassador/Lafayette
Front Shock Arm Adjusting Screw Assembly
Complete with Bushings, Seals & Oilers
3103046 NOS, $79 each,
2 needed per car,
2 available
41-42 600
Front Shock Fulcrum
3107041 NOS
46-48 600
Pivot Bushing Seal (Rubber)
3108295 NOS
4 needed per car,
4 available
46-48 600
Upper Control Arm Pivot Bushing,
(w. Oiler)
3108482 NOS
4 needed per car,
2 available
46-48 600
Upper Control Arm Bumper (Rubber)
3122957 NOS
2 needed per car,
2 available
46-51 600/Statesman/Ambassador
Upper Arm Pivot Bar
(including Seals & Bushings)
3123625 NOS, $69 each
2 needed per car,
2 available
41-48 Ambassador
Upper Control Arm Assembly,
Complete with Bar and Bushings
3106862 NOS, $125
2 needed per car,
1 available
49-51 600/Statesman/Ambassador
Upper Control Arm Trunnion Kit
3113646 NOS, $79 each
2 needed per car
2 available
50-54 Rambler
Upper Control Arm Trunnion
3129511 NOS, $49 each
2 needed per car
2 available
50-54 Rambler;
58-63 American
Upper Control Arm Bumper
3130689
3159330
NOS, $39
2 needed per car,
1 available
50-51 Rambler
Upper Inner Control Arm Shaft Assembly
(with seal & bushing)
3114013 NOS
2 needed per car,
2 available
52-55 Rambler;
58-63 American
Upper Control Arm Assembly
313524 SOLD
52-54 Statesman/Ambassador
Upper Control Arm Pivot Bar
3133511 NOS, $49,
1 available
52-54 Statesman/Ambassador
L Upper Control Arm
3134259 NOS
52-54 Statesman/Ambassador
R Upper Control Arm
3134260 NOS
52-56 Statesman/Ambassador;
62-67 Classic/Marlin/Amb 8 cyl;
57 Rebel;
57-61 Rebel/Ambassador
60-64 Classic 6 Cyl;
65-66 Classic/Ambassador 232 6 Cyl;
65-66 Classic 199 6 Cyl
Upper Control Arm Trunnion Assembly
3203924 NORS, $200 each
2 needed per car
2 available
52-56 Statesman/Ambassador;
55-58 Rambler;
58-63 American;
60-67 All except American
Upper Trunnion Needle Bearing
3133514 NOS, $19 each
4 needed per car
4 available
55 Rambler;
58-63 American (3206277)
Upper Control Arm Trunnion
(Including Bolt Kit)
3142767 NOS, $190 each
2 needed per car
2 available
55 Rambler;
58-63 American (3206277)
Upper Control Arm Trunnion
(Without Bolt Kit)
3142767b NOS, $100 each
2 needed per car
2 available
56-60 Rambler;
57 Rebel/Ambassador/Hudson
Upper Control Arm Bumper,
(Rubber)
3133531 SOLD
57-58 Rambler Six/Rebel;
57 Rebel/57 Hudson;
59 Rambler, Ambassador
Front Suspension Upper
Control Arm (LF-RR)
3149642 NOS
57-58 Rambler Six/Rebel;
57 Rebel; 57 Hudson;
59 Rambler, Ambassador
Front Suspension Upper
Control Arm (RF-LR)
3149643 NOS
62 Classic/Ambassador
Upper Control Arm Spacer Kit
3204287 NOS, $19
70-88 All (except Pacer)
LH Front Upper Control Arm
(w. bushings & ball joint)
3220135 NORS, $175
Bushings have age cracks,
should be replaced
70-88 All (except Pacer)
Upper Inner Control Arm Bushing Kit
8123074 NOS, $39
Only 1 available
62-66 Classic/Ambassador;
65-67 Marlin;
67-68 Rebel/Ambassador
Upper Control Arm Eccentric Bolt
3163429 NOS, $14 each
2 available
70-83 All (except Pacer)
Upper Control Arm Eccentric Bolt Washer
3225087 NOS, $9 each
2 needed per car,
1 available
64-69 American;
68-69 AMX/Javelin
Upper Trunnion (with Bushings)
3184708 NOS, $200
67-69 Rebel/Marlin/Ambassador
Upper Trunnion Kit (Bushing Type)
3203970 NOS
Return to Top of Page
PITMAN ARM
YEAR/MODEL PART # CONDITION PICTURE
41-42 Ambassador 8
Pitman Arm
3107253 NOS, $89
41-48 Ambassador 6
Pitman Arm
3106597 NOS, $129
46-48 600
Pitman Arm
3121408 NOS, $129
49-51 Statesman/600
Pitman Arm
3124196 NOS, $69
49-51 Ambassador
Pitman Arm
3124197 NOS, $79
50-53 Rambler
Pitman Arm
3113954 NOS, $69
52-53 Statesman
Pitman Arm
3133678 NOS, $79
52-53 Ambassador
Pitman Arm
3133681 NOS, $79
56-57 Rambler;
57 Rambler Rebel
(with Power Steering)
Pitman Arm
3149229 NOS, $99
57 Hudson;
58-63 American/Rebel/Classic/Ambassador
(with Power Steering)
Pitman Arm Linkage Stud
3202406 NOS, $39
58-59 Rambler V-8;
58-59 Ambassador (w. Power Steering)
Pitman Arm Stud to Plug Cushion
3203145 NOS, $4 each
2 needed per car,
2 available
60 Rambler Six; 61 Classic
(Less Power Steering)
Pitman Arm (Incl. Stop Pin)
3157657 NOS, $149
60-61 American/Rebel/Classic/Ambassador
(With Power Steering)
Pitman Arm Stud to Cylinder Bushing
Type 1
3119802 NOS, $9
60-63 All Models
(With Power Steering)
Pitman Arm Stud to Cylinder Bushing
Type 2
3203030 NOS, $9 each
2 needed per car
2 available
62-63 American
(Less Power Steering)
Pitman Arm
3164035 NOS, $149
65-68 Ambassador;
67 Marlin
(With Power Steering)
Pitman Arm
3187789 NOS, $199
64-69 American;
68-74 AMX/Javelin;
70-83 Hornet/Gremlin/Concord/Spirit
(Manual Steering)
Pitman Arm
3204740 NOS, $35
Return to Top of Page
IDLER ARM PIN & BUSHING
YEAR/MODEL PART # CONDITION PICTURE
40-48 Ambassador;
40 Lafayette
Idler Arm
3111900 NOS, $79
46-48 600
Idler Arm
(Incl. 3 Ball Studs)
3121265 NOS, $179
46-48 600
Idler Arm Ball Joint Kit
3113152 NOS, $39 each
3 available
46-48 600
Idler Arm Bushing
3123354 NOS, $25
46-48 600
Idler Arm Spacers & Seals
(With Instructions)
3112401 SOLD
47-48 600
Idler Arm Spacer
3122810 NOS, $2
47-48 600
Idler Arm Seal (Rubber)
3121248 NOS, $9 ea.
3 needed per car,
3 available
49-51 Ambassador
Idler Arm
3124195 NOS, $79
49-51 600/Statesman
Idler Arm
3124194 NOS, $99
52-54 Statesman
Idler Arm
3133742 NOS, $69
46-56 Ambassador 6;
Ambassador V-8 (LPS);
49-56 600/Statesman;
50-55 Rambler (LPS);
56-57 Rambler (LPS);
57 Rebel
(Manual Steering)
Idler Arm Bushing
3152742 SOLD
49-56 Statesman/Ambassador/Rambler
(Manual Steering)
Idler Arm Seal
3102981 SOLD
50-51 Rambler
Idler Arm
3113955 NOS, $69
52-53 Rambler
Idler Arm
3115803 NOS, $79
52-56 Ambassador
(With Power Steering)
Idler Arm
3133738 NOS, $99
54 Rambler
Idler Arm
3117263 NOS, $79
55 Rambler
Idler Arm
3118656 NOS, $79
56 Rambler
(Manual Steering)
Idler Arm
3118969 NOS, $79
57 Rambler
(Manual Steering)
Idler Arm
3119782 NOS, $99
57 Ambassador/Hudson
(Manual Steering)
Idler Arm
3200032 NOS, $129
58-59 Rambler Rebel
Idler Arm
3153574 NOS, $39 each
2 needed per car,
2 available
58-61 American
Idler Arm
(with bushing)
3154187 NOS, $59
58-61 Ambassador
(Less Power Steering)
Idler Arm
(with bushing)
3153581 NOS, $99
58-61 Rambler Six/Classic
(Manual Steering)
Idler Arm
(with Bushing only)
3154390 NOS, $29
58-61 Rambler Six/Classic
(Manual Steering)
Idler Arm Stud
(In crosstube)
3201052 NOS, $29
58-61 Rambler Six/Rebel/Classic
(Manual Steering)
Idler Arm Pivot Pin
3155534 NOS, $29
58-61 Rambler Six/Rebel/Classic
(Manual Steering)
Idler Arm Pivot Pin Spacer
3155335 NOS, $5 ea.
2 needed per car
2 available
58-61 Rambler/Classic (Six)
(Manual Steering)
Idler Arm Bushing
3154563 NOS, $19
58-61 American/Ambassador
(Manual Steering)
Idler Arm Bushing
3153573 NOS, $39
62 Classic/Ambassador
(w. Manual Steering)
Idler Arm
3164138 NORS, $59
63-69 Classic/Rebel;
63-64, 69 Ambassador;
65-66 Marlin
Idler Arm
18622 NORS, $99
64-69 American;
68-74 AMX/Javelin;
70-78 Rebel/Matador/Ambassador
Idler Arm
18714 NORS, $39
70-76 Gremlin/Hornet
Idler Arm
18741 NORS, $39
77-88 Hornet/Gremlin/Concord/Spirit/Eagle
Idler Arm
3229571 SOLD
Return to Top of Page
IDLER ARM BRACKET
YEAR/MODEL PART # CONDITION PICTURE
41-48 Ambassador
Idler Arm Bracket
3102954 NOS, $49
49-51 600/Statesman/Ambassador
Idler Arm Bracket
3124200 NOS, $29
50-E52 Rambler
(on 52 before D-92609 & DKD2435) -1
Idler Arm Bracket
3116400 NOS, $29
52-56 Ambassador
(Less Hydramatic);
55-56 Ambassador 8
(Manual Steering)
Idler Arm Bracket, Including Support
3133737 NOS, $49
52-55 Statesman
Idler Arm Bracket, Including Support
3133741 NOS, $39
52-55 Rambler
Idler Arm Bracket
3135109 NOS, $39
56 Statesman/Ambassador Special V-8
(Manual Steering)
Idler Arm Bracket
3145353 NOS, $29
56-57 Rambler
Idler Arm Bracket
3144918 NOS, $39
57 Rambler V-8/Rebel
(Manual Steering)
Idler Arm Bracket
3150725 NOS, $29
57 Ambassador/Hudson
(Manual Steering)
Idler Arm Bracket
3150398 NOS, $29
58-60 Rambler Six;
61 Classic
(Manual Steering)
Idler Arm Bracket
3153567 NOS, $39
62 Classic/Ambassador
Idler Arm Bracket
3164237 NOS, $39
62-63 American
(Manual Steering)
Idler Arm Bracket
3164032 NOS, $59
63 Classic/Ambassador
Idler Arm Bracket
3166456 NOS, $29
64 Ambassador/Classic;
65 Classic
Idler Arm Bracket
3171886 SOLD
64-68 American
Idler Arm Bracket
3169789 NOS, $59
Return to Top of Page
TIE ROD
YEAR/MODEL PART # CONDITION PICTURE
37-39 Ambassador 8
Tie Rod End (L)
93585 NOS, $19
37-39 Ambassador 8
Tie Rod End (R)
93586 NOS, $19
37-39 Lafayette/Ambassador Six
Tie Rod End (L)
93587 NOS, $49
40 Lafayette/Ambassador
Steering Tie Rod,
(including stud)
3104316 NOS, $49
41-48 Ambassador
Steering Tie Rod,
(including stud)
3110618 NOS, $69
40 Lafayette;
40-48 Ambassador
RH Tie Rod End
3104317 NOS, $49
40 Lafayette;
40-48 Ambassador
LH Tie Rod End
3105159 NOS, $49
41-42 600
Tie Rod End
3108221 NOS, $29 each
2 available
37-39 Lafayette/Ambassador Six
Steering Tie Rod,
(Including Both Ends)
92465 NOS, $199
Late 30's?
Steering Tie Rod
(Complete with Tube & End)
10.118-1 NOS, $49
Late 30's?
Steering Tie Rod, 30"
(Including Stud)
10.118-2 NOS, $79
Late 30's?
Steering Tie Rod, 34-1/2"
(Complete with Tube & Ends)
25124 NOS, $49 each
2 available
39 Ambassador 8
Steering Tie Rod,
(Complete with both Ends)
98957 NOS, $99
40-48 All;
49-56 600/Statesman/Ambassador;
57 Rambler (w.o. P.S.);
57 Ambassador/Rebel/Rambler V-8
Tie Rod Adjusting Tube Kit
3104322 NOS, $14
46-48 600
Steering Tie Rod
(Complete with Tube & End)
3121255C NOS, $149 each
2 needed per car,
2 available
46-48 600
Tie Rod End,
(from Stud to Tube)
3122310 NOS, $24 each
2 needed per car,
2 available
46-48 600
Tie Rod Ball Stud, Bearing Kit
3113645 NOS, $69 each
2 needed per car,
2 available
49-51 600-Statesman
RH Inner Tie Rod
3113053 NOS, $29
49-51 600-Statesman
LH Inner Tie Rod
3113054 NOS, $29
49-51 600-Statesman
LH Tie Rod, Tube, Tie Rod End Assembly
10.122-516A NOS, $54
49-51 Ambassador
RH Tie Rod, Tube, Tie Rod End Assembly
10.122-517A NOS, $54
49-51 Ambassador
LH Inner Tie Rod
(Thompson Type, short)
3113056 NOS, $14
49-51 Ambassador
RH Inner Tie Rod
(Thompson Type, short)
3113055 NOS, $14
49-51 Ambassador
RH Outer Tie Rod End
3113991 NOS, $39
49-51 Ambassador
LH Outer Tie Rod
(Columbus Type)
3113992 NOS, $39
49-51 Ambassador
RH Inner Tie Rod
(Columbus Type)
3113993 NOS, $22
49-51 Ambassador
LH Inner Tie Rod
(Columbus Type)
3113994 NOS, $22
49-51 Ambassador
RH Tie Rod End
(Thompson Type)
3113051 NOS, $39
49-51 Ambassador
LH Tie Rod End
(Thompson Type)
3113052 NOS, $39
49-51 600/Statesman
Tie Rod End
(RH w. Columbus)
(RH & LH w. Thompson)
3113057 NOS, $19 each
(Two used with
Thompson linkage)
52-53 Statesman (RH w.o. P.S.);
54 Statesman RH;
55-56 Statesman (LH w.o. P.S.);
52-54 Ambassador 6 (RH w.o. P.S.);
55-57 Ambassador (LH w.o. P.S.);
55-57 Ambassador (RH w. P.S.)
Tie Rod End
3113057 NORS, $19 each
52-54 Statesman/Ambassador, (LH w.o. P.S.);
53-54 Ambassador 6 (RH w. P.S.);
54 Statesman (RH w. P.S.)
Tie Rod End, (Thompson)
3115492 NORS, $19
52-54 Statesman/Ambassador, (RH w.o. P.S.);
53-54 Ambassador 6 (LH w. P.S.);
54 Statesman (LH w. P.S.)
Tie Rod End, (Thompson)
3115491 NORS, $19
51-54 Rambler (RHD)
Right Hand Inner Tie Rod
3115802 NOS, $19
51-57 Rambler
(Manual Steering)
Tie Rod End
3113956 NOS, $19
2 needed per car,
1 available
52-54 Statesman/Ambassador
(Manual Steering)
Right Hand Inner Tie Rod
(Thompson Type)
3115792 NOS, $45
52-54 Statesman/AmbassadorManual Steering)
Left Hand Inner Tie Rod
(Thompson Type)
3115793 NOS, $45
52-54 Statesman/Ambassador
(Manual Steering)
Right Hand Inner Tie Rod
(Columbus Type)
3115812 NOS, $19
52-54 Statesman/Ambassador
(Manual Steering)
Left Hand Inner Tie Rod
(Columbus Type)
3115813 NOS, $19
55 Rambler;
58 American (with 9/16" tie rod)
Right Hand Inner Tie Rod
3118654 NOS, $39
55-56 Ambassador;
56 Statesman/Ambassador Special V-8
(Manual Steering)
Right Hand Inner Tie Rod
3118603 SOLD
56-57 Rambler
(w. Power Steering)
Tie Rod End
3119667 NOS, $15 each
2 needed per car,
2 available
58-59 Rambler Six
Left Hand Inner Tie Rod
(Manual Steering)
3200807 NOS, $39
60-61 Rambler Six/Classic
(Less Power Steering)
Left Hand Tie Rod
3202110 NOS, $39
60-61 Rambler Six/Classic
(Less Power Steering)
Right Hand Tie Rod
3202109 NOS, $39 See above picture
62-63 Ambassador/Classic;
64-E70 Classic/Rebel/Ambassador/Marlin
Inner Tie Rod
4486536 NOS, $99
64-69 American/Rambler;
70-72 Gremlin/Hornet
Inner Tie Rod
3209636 NOS, $35
58-59 Rambler Six
(Manual Steering)
Steering Linkage Support
3154392 NOS, $29
58-59 Rambler V-8 (Type 1)
Idler Arm to Steering Arm Rod
3153252 NOS, $49
Return to Top of Page
STEERING WHEEL - HORN CAP
YEAR/MODEL PART # CONDITION PICTURE
29-31? Nash
Overhead Models
Steering Wheel
20's Wheel Used, $200
32 Advanced 8 (1090)
Steering Wheel
10.280-1090 Excellent Used,
Minor cracks,
$250
30's? Nash
Steering Wheel
30'sWheel Used, $150
37 Lafayette/Ambassador
Banjo Steering Wheel,
(Sheller)
92400 Used, $300
38 Lafayette?
Steering Wheel
96614 Excellent Used, $100
39 Lafayette/Ambassador
Steering Wheel, (Deluxe)
(w. Hornring)
99068 Used, $300
46 & 48 600/Ambassador
Steering Wheel,
Complete w. Cap & Trim

3121304C Near Mint Used

40's-50's Nash Truck
Steering Wheel
10.280-Truck Used,
Core to restore,
$200
51 Statesman/Ambassador (Super)
Steering Wheel
3131432 Used,
Core to restore,
$49
51-55 Rambler (Super)
Steering Wheel,
(Black)
3128307 NOS, $199
52-55 Rambler (Custom)
Steering Wheel,
(Black)
3133660 NOS, $375
52-54 Statesman/Ambassador (Super)
55 Statesman/Ambassador,
(Horn Ring has O.D. of 13-7/16")
Steering Wheel,
(w. Full Horn Ring & Horn Parts)

3136710 Used,
Has cracks around center,
$69
52-57 Statesman/Ambassador (Custom)
Steering Wheel,
(with Full Horn Ring)
3134654 Ex. Used, $200
58-59 Ambassador
Steering Wheel
(w. Spring & Nut)
3156175 Ex. Used,
No Cracks, $149
58-59 Rambler Six/Rebel
Steering Wheel, (Blue)
3156163 NOS, $275
58-59 Rambler Six/Rebel
Steering Wheel, (Black)
3153322 NOS, $225
60 Rambler Six/Rebel/Ambassador
(Fits thru 63)
Steering Wheel, (White/Gray)
3157778 NOS, $300
64 Classic/Ambassador
Steering Wheel,
Light green with trim
10.280-11 NOS, $400
65-66 Classic/Ambassador
(Deluxe)
Steering Wheel,
Dark Blue
10.280-8 NOS,
light shelf wear, $150
65-66 Classic/Ambassador
(Deluxe)
Steering Wheel,
Teal
10.280-10 NOS,
light shelf wear, $100
65 Classic
Steering Wheel, Aqua
10.28-1 Excellent Used, $50
Two small cracks
66 Classic
Steering Wheel, 2 Tone Blue
10.280-7 Excellent Used, $50
Two small cracks
70 AMC
(w. Center Horn Button)
Steering Wheel, Black
3212672 NOS, $200
70-71 AMC
(w. Rim Blow Horn)
Steering Wheel, Green
Rim Blow Excellent Used
74-77 Matador Coupe;
75-77 Pacer/Matador Sedan;
76-77 Hornet/Gremlin
Steering Wheel, Tan

3224414 (w. Vinyl Covered
Center Horn Button),
NOS, w.
original plastic cover
49-54
Statesman & Ambassador Super
Steering Wheel Horn Cap
3128857 NOS
52-54
Statesman/Ambassador Custom
Steering Wheel Horn Cap
3134656 NOS
54-55 Ambassador/Statesman
(With Overdrive, Less Nash Emblem)
Steering Wheel Horn Cap
3139835 NOS
55 Rambler
Steering Wheel Horn Cap (Black)
3142506 NOS, $79
56 Nash
Steering Wheel Horn Cap (Blue)
3147166 NOS, $99
56 Rambler
Steering Wheel Horn Cap (Green)
3147018 NOS
56 Rambler
Steering Wheel Horn Cap (Grey)
3146615 NOS
57 Rambler (All but American)
Steering Wheel Horn Cap (Black)
2-1/2" Diameter
3151272 Excellent Used,
$29
58-59 Rambler Six/V-8/Ambassador
Steering Wheel Horn Cap
3153860b Ex. Used, $49
61-63 American; 60-62 Classic;
60 Rebel V-8; 61 Classic V-8
(Used with chrome horn ring)
Steering Wheel Horn Cap
3157645 Used
Return to Top of Page
STEERING GEAR - POWER STEERING
YEAR/MODEL PART # CONDITION PICTURE
41-48 Ambassador
Linkage Stabilizer
3106733 NORS, $69 each,
2 needed per car
2 availble
38-40 Lafayette;
38-48 Ambassador
Stabilizer Link Grommet
96068 NOS, $8 each
8 needed per car
8 availble
41-42 600
Steering Linkage Cross Tube
3112186 NOS, $149
49-51 600/Statesman
Manual Steering Linkage Center Link,
(Cross Tube)
3112942 NOS, $249
49-51 Ambassador
Manual Steering Linkage Center Link,
(Cross Tube)
3112943 NOS, $249
52-54 Rambler
Steering Linkage Cross Tube
3115796 NOS, $79
58-59 Rambler Six,
w. Manual Steering
Steering Linkage Cross Tube
Shock Kit, (w. Inst.)
3209508 NOS, $24
57-63 American/Rambler Six/Classic;
57 Rambler V-8/Rebel
Steering Linkage Cross Tube Adjusting Plug
3115477 NOS, $29 each
2 needed per car
2 available
37-39 Ambassador 8
40 Lafayette/Ambassador, 41-42 Ambassador
Oil Seal,
Steering Gear Pitman Shaft
93518 NOS, $9
37-40 Lafayette/Ambassador 6
41-48 Ambassador 6
Oil Seal,
Steering Gear Pitman Shaft
93506 NOS, $9
49-56 600/Statesman/Ambassador
Steering Gear Cross Shaft
Oil Seal
3112948 NOS, $9
62-63 American;
64-66 American, (less Power Steering)
Steering Gear Cross Shaft
Oil Seal
3203459 NORS, $9
41-42 600
Steering Gear Assembly
Complete w. Box & Tube
3109321 NOS, $200
46-48 600
Steering Gear Assembly
Complete w. Box & Tube
3121405 NOS, $350
62-63 American
Steering Gear Assembly
Complete w. Box & Tube
3162941 NOS, $400
64-76 All
(with Power Steering)
Steering Gear Assembly
3182969 NOS, $375
41-42 600
Steering Gear Pitman Shaft
3107854 NOS, $99
46-48 600
Steering Gear Pitman Shaft
3121998 NOS, $129
49-50 600/Statesman/Ambassador;
53-54 Ambassador (with Power Steering)
Steering Gear Pitman Shaft
3112946 NOS, $149
50-55 Rambler
Steering Gear Pitman Shaft
3200953 NOS, $129
Unknown Year/Model
Steering Gear Worm and Tube
51" Length, (Gear has 49 stamped)
10.314-1 NOS, $99
Unknown Year/Model
Steering Gear Worm and Tube
45-1/4" Length, (Gear has 58 stamped)
10.314-2 NOS, $99
Unknown Year/Model
Steering Gear Worm and Tube
45-1/2" Length, (Gear has 82 stamped)
10.314-3 NOS, $99
38-39 Lafayette/Ambassador Six
Steering Gear Worm and Tube,
(42")
96331 NOS, $199
39 Ambassador
Steering Gear Worm and Tube
(43-1/2")
99454 NOS, $249
40 Lafayette
Steering Gear Worm and Tube
(51-1/4)
3104757 NOS, $199
41 600
(to N4-45268)
Steering Gear Worm and Tube,
(54-1/2")
3111790 NOS, $149
41-42 600,
(54-1/2")
Steering Gear Worm and Tube
3109346 NOS, $99
49 Ambassador
(will also fit 41-48 Amb)
Steering Gear Worm and Tube
(53-1/4")
3112949 NOS, $299
51-55 Rambler
Steering Gear Worm and Tube
(48-1/2")
3115159 NOS, $249
52-54 Ambassador
(w. Manual Steering)
Steering Gear Worm and Tube
(46-3/4")
3115849 NOS, 275
53-54 Statesman
(w. Manual Steering)
Steering Gear Worm and Tube
(40-3/4")
3115846 NOS, $249
52-53 Statesman;
54 Statesman, (less Power Steering)
Steering Gear Pitman Shaft
3115845 NOS, $149
56 Statesman/Ambassador Special
(less Power Steering)
Steering Gear Pitman Shaft
3119273 NOS, $149
56 Rambler;
57 Rambler Six/V8;
57 Rebel
Steering Gear Pitman Shaft
(Includes adj. screw & thrust washer)
3201513 NOS, $99
58-67 Rambler/Rebel/Classic/Marlin;
62-67 Ambassador;
68-83 All (except Pacer)
Steering Gear Pitman Shaft
3200503 NOS, $129
58-61 Ambassador
Steering Gear Pitman Shaft
3200513 NOS, $89
57 Rambler/Rebel
58-59 Six/Rebel/Ambassador (WST)(WOD)
Steering Gear Tube Jacket,
Lower 1/2
3146179 NOS, $40
59 Six/Rebel/Ambassador
Steering Gear Jacket Tube Bracket (Incl. Pin)
3158638 NOS, $14
65 Classic?,
(Fits 63-66 Classic/Marlin/Ambassador)
Tilt Steering Column,
w. Shaft, Lever & Switch
10.338-Tilt Used, $300
64-65 American (RHD)
Steering Gear Pitman Shaft
3204790 NOS, $75
64-67 American
Steering Gear Pitman Shaft
3204724 NOS, $149
37-48 Ambassador 6/600/Lafayette;
49-56 Ambassador/600/Statesman;
50-57 Rambler/Rebel
Worm Gear Bearing
49315 NOS, $19 each,
2 required per car
37-42 Ambassador 8
Worm Gear Bearing
48364 NOS, $19 each,
2 required per car
37-42 Ambassador 8
Worm Gear Bearing Cup
48365 NOS, $14
37-39 Ambassador 8;
40 Lafayette/Ambassador;
41 Ambassador;
42 Ambassador 8
Worm Gear Bearing Cup
48366 NOS, $14
37-40 Ambassador Six/Lafayette;
41-42 600/Ambassador 6;
46-48 600/Ambassador
Worm Gear Bearing Cup
28523 SOLD
37-40 Ambassador Six/Lafayette;
41-42 600/Ambassador 6;
46-48 Ambassador
Worm Gear Bearing Cup
24416 NOS, $29
64-67 American
Worm Gear Bearing Cup (Lower)
3204728 NOS, $9
61 American
Steering Gear Jacket Tube Lower Bushing
(Nylon)
3203276 NOS, $9
56 Rambler
Steering Gear Grommet
3147255 NOS
54-57 Statesman/Ambassador;
57-59 Rambler (WPS)
Power Cylinder Rod to Bracket Nut
3116972 NOS, $9
55-56 Ambassador 8;
57 Ambassador/Hudson
(Types 1-2)
Power Steering Cylinder Piston Rod,
w. Ring/Nut
3118793 NOS, $49
57-59 Rambler Six;
57 V-8/Rebel;
58-59 Ambassador;
60-63 American;
60-62 Classic/Ambassador,
Type 1
Power Steering Cylinder Piston Rod,
w. Ring/Nut
3203026 NOS, $49
62 Classic/Ambassador,
Type 2
Power Steering Cylinder Piston Rod,
w. Ring/Nut
3203899 NOS, $49 See above picture
56 Statesman/Ambassador Special;
57-58 Rambler 6;
57 V8/Rebel;
57 Ambassador/Hudson
Power Steering Cylinder End Plug
3119797 NOS, $49
54-58 Nash/Rambler?
Power Steering Cylinder End Plug
10.41-1 NOS, $49
53-56 Statesman/Ambassador
Power Steering Cylinder
(Incl. Ball End Seat, Plugs & Spring)
3116401 NOS, $299
Only 1 available
53-56 Ambassador
3137371 NOS, $24
Only 1 available
55-56 Ambassador 8 cyl
Power Steering Pump Cover
(with Decal)
3119155 NOS, $49
57 Rambler V-8/Ambassador;
57 Hudson
Power Steering Pump Assembly
& Reservoir (Eaton)
3145965 NOS, $299
61-63 American/Classic,
SIX (LAC)
Power Steering Pump Assembly
(w. Reservoir & Pulley)
3203646 NOS, $299
64-66 American/Classic/Marlin/Ambassador
SIX, (WAC) (LEEP),
(2-1/8" Filler Tube)
Power Steering Pump Assembly
(w. Reservoir & Pulley)
3172671 SOLD
65 American SIX, (LAC);
64-65 Classic 232, (LAC);
65 Classic 199;
65 Marlin/Ambassador 232
65 American SIX, (LAC);
64-65 Classic 232, (LAC);
65 Classic 199;
65 Marlin/Ambassador 232
Power Steering Pump Assembly
(w. Reservoir & Pulley)
3177278 NOS, $299
66-67 All (Six)
(w. A/C), (w. Emission Pump)
Power Steering Reservoir to Support Brace,
with hardware
3208161 NOS, $49
56 Statesman/Amb. Special
57 Ambassador/Hudson (WPS)
Power Cylinder Piston Rod
3119909 NOS, $20
57 Ambassador/Hudson (WPS)
Power Steering Cylinder to
Sill Mounting Bracket
3152667 NOS, $49
55-56 Ambassador (type 1);
56 Statesman/Amb. Special (type 1);
56-58 Rambler Six/V-8,
57 Rebel
Power Cylinder Valve Spool Pitman Arm Stud,
(Inner, Large)
3118804 NOS, $19
55-56 Ambassador (type 1);
56 Statesman/Amb. Special (type 1);
56-58 Rambler Six/V-8,
57 Rebel
Power Cylinder Valve Spool Pitman Arm Stud Seat
(Small)
3118805 NOS, $19
56 Statesman/Amb. Special;6-58 Rambler Six/V-8,
57 Rebel (type 1);
57 Ambassador (type 3 & 4);
58-59 Ambassador (type 1)
Power Cylinder Valve Spool Seal Kit
3119801 NOS, $29
59 Rambler Six;
58-59 Rambler V-8; (types 2 & 3);
57 Ambassador (type 5);
58-59 Ambassador (type 2)
60-61 Ambassador (types 1 & 3);
60 Ambassador (type 1);
61 Ambassador (types 1 & 3)
Power Cylinder Valve Spool Rod End Assy. Kit
3201351 NOS, $59
58-59 Rambler V-8; (type 4);
58-59 Ambassador (type 3);
60-63 American; (type 2)
60-61 Rambler Rebel/Classic (type 2);
60-61 Ambassador (type 2);
62-63 Classic/Ambassador (type 1)
Power Cylinder Valve Spool Rod End Assy. Kit
3203238 NOS, $59
60 Ambassador (Type 1);
61 Ambassador,
(Type 1 & 3)
Power Steering Return Hose
to Cylinder Fitting
3201356 NOS, $5
60 Rambler Six/American, Type 1,
Reservoir Oil Filler, (Tube is 1-7/8" OD)
Power Steering Pump Resevoir to Pump Seal
3202167 NOS, $19
60-66 All
Power Steering Pump Return Hose
3202182 NOS, $9
61 Ambassador
Power Steering Pressure Hose
3161084 NOS, $29
62 Ambassador;
63 Ambassador (Type 1,
fittings on front side of cylinder)
Power Steering Pressure Hose
3164794 NOS, $29
64-66 Ambassador/Classic/Marlin (V-8)
Power Steering Pressure Hose
3174228 NOS, $29
65 American/Ambassador (232);
65 American/Classic (199);
65 American/Classic/Marlin (232);
66 All (Six)
Power Steering Pump Hose Cradle
3176336 NOS, $29
65-66 Ambassador
(w. 232 OHV)
Power Steering Pressure Hose
3178346 NOS, $29
65 American/Ambassador (232);
65 American/Classic (199);
65 American/Classic/Marlin (232);
66 All (Six)
Power Steering Pump Strap
3178304 SOLD
65 American/Ambassador (232);
65 American/Classic (199);
65 American/Classic/Marlin (232);
66 All (Six)
Power Steering Pump Pulley to
Pump Bracket Reinforcement
3177670 NOS, $39
65-66 Ambassador
(w. 232 OHV)
Power Steering Pump Spacer
3177174 NOS, $39
67 All (V-8 w. Emission Pump)
Power Steering Pump Pulley
3181664 NOS, $49
67-70 (V-8)
66 American V-8;
71 V8 (with Eaton Pump);
72 Amb.Matador (V8 with Eaton Pump)
Power Steering Pump Spacer
3185532 NOS, $49
75 All (V-8 w. Emission Pump)
Power Steering Pump Pulley
3225448 NOS, $49
73-83 All
(w. Power Steering)
(except Pacer)
Steering Gear Pitman Shaft
8122958 NOS, $249
65-66 Classic Convertible
(less Tilt Wheel)
Lower Steering Gear Shaft
3178738 NOS, $99
65-66 All
(w. Power Steering)
Steering Gear/Power Steering Flange
3205845 NOS, $49
Return to Top of Page
Nashparts.com Parts
HOME
